Share CLOCK 7SEG sử dụng ATMEGA16, full code C use Codevision, demo use PROTEUS 8.5

CLOCK 7SEG sử dụng ATMEGA16

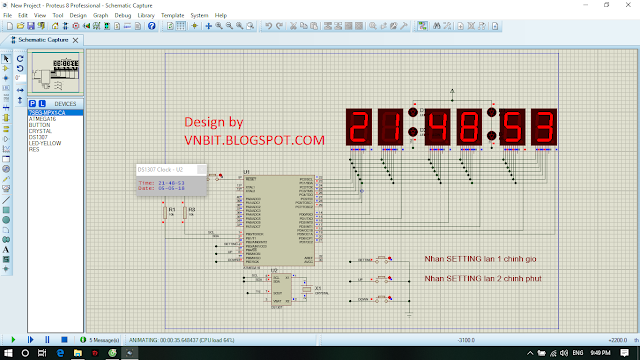

+ File full code và mô phỏng ở cuồi bài.Lưu ý, mô phỏng dùng Proteus 8.5

- Sử dụng 3 phím SETTING, UP, DOWN để điều chỉnh giờ.

               + Nhấn SETTING lần thứ nhất để chỉnh giờ, lần 2 để chỉnh phút. dùng phím UP, DOWN để di chuyển giữa 2 đơn vị GIỜ và PHÚT.

CHÚ Ý: Khi nhấn SETTING hay di chuyển giữa các đơn vị bằng UP or DOWN các bạn sẽ ko thấy các đơn vị nhấp nháy ( mình chưa sửa phần này), vì thế các bạn lưu ý nhớ số lần nhấn nút.

CODE C

/*******************************************************
http://www.vnbit.blogspot.comDate : 21-Apr-2016Author : EDIT by Nguyen Van Thuan




Chip type : ATmega16Program type : ApplicationAVR Core Clock frequency: 4.000000 MHzMemory model : SmallExternal RAM size : 0Data Stack size : 256*******************************************************/
#include <mega16.h>#include <delay.h>#include <i2c.h>#include <ds1307.h>#include <stdlib.h>//#define SET PINB.3;//#define UP PINB.5;//#define DOWN PINB.7;
unsigned char flash maled[10] = {0xc0,0xf9,0xa4,0xb0,0x99,0x92,0x82,0xf8,0x80,0x90};unsigned char set;unsigned char gio,phut,giay;unsigned char a=0;void hienthi(){ PORTD = 0x01; PORTC = maled[gio/10]; delay_us(300); PORTC = 255;
PORTD = 0x02; PORTC = maled[gio%10]; delay_us(300); PORTC = 255;
PORTD = 0x04; PORTC = maled[phut/10]; delay_us(300); PORTC = 255;
PORTD = 0x08; PORTC = maled[phut%10]; delay_us(300); PORTC = 255;

PORTD = 0x10; PORTC = maled[giay/10]; delay_us(300); PORTC = 255;
PORTD = 0x20; PORTC = maled[giay%10]; delay_us(300); PORTC = 255; }void caidat(){
if(PINB.3==0) { a=1; set++; if(set>2) { set=0; a=0; } while(PINB.3==0); } if(set==1) { if(PINB.5==0) { gio++; if(gio==24) gio=0; while(PINB.5==0); { rtc_set_time(gio,phut,giay); } } if(PINB.7==0) { gio--; if (gio==255) gio=23; while (PINB.7==0); { rtc_set_time(gio,phut,giay); } } PORTD = 0x01; PORTC = maled[gio/10]; delay_us(300); PORTC = 255;
PORTD = 0x02; PORTC = maled[gio%10]; delay_us(300); PORTC = 255; } if (set==2) { if (PINB.5==0) { phut++; if (phut>59) phut=0; while(PINB.5==0); { rtc_set_time(gio,phut,giay); } } if (PINB.7==0) { phut--; if (phut==255) phut=59; while (PINB.7==0); { rtc_set_time(gio,phut,giay); } } PORTD = 0x04; PORTC = maled[phut/10]; delay_us(300); PORTC = 255;
PORTD = 0x08; PORTC = maled[phut%10]; delay_us(300); PORTC = 255; } }



void main(void){// Declare your local variables here
// Input/Output Ports initialization// Port A initialization// Function: Bit7=Out Bit6=Out Bit5=Out Bit4=Out Bit3=Out Bit2=Out Bit1=Out Bit0=Out DDRA=(1<<DDA7) | (1<<DDA6) | (1<<DDA5) | (1<<DDA4) | (1<<DDA3) | (1<<DDA2) | (1<<DDA1) | (1<<DDA0);// State: Bit7=0 Bit6=0 Bit5=0 Bit4=0 Bit3=0 Bit2=0 Bit1=0 Bit0=0 PORTA=(0<<PORTA7) | (0<<PORTA6) | (0<<PORTA5) | (0<<PORTA4) | (0<<PORTA3) | (0<<PORTA2) | (0<<PORTA1) | (0<<PORTA0);
// Port B initialization// Function: Bit7=Out Bit6=Out Bit5=Out Bit4=Out Bit3=Out Bit2=Out Bit1=Out Bit0=Out DDRB=(1<<DDB7) | (1<<DDB6) | (1<<DDB5) | (1<<DDB4) | (1<<DDB3) | (1<<DDB2) | (1<<DDB1) | (1<<DDB0);// State: Bit7=0 Bit6=0 Bit5=0 Bit4=0 Bit3=0 Bit2=0 Bit1=0 Bit0=0 PORTB=(1<<PORTB7) | (0<<PORTB6) | (5<<PORTB5) | (0<<PORTB4) | (1<<PORTB3) | (0<<PORTB2) | (0<<PORTB1) | (0<<PORTB0);
// Port C initialization// Function: Bit7=Out Bit6=Out Bit5=Out Bit4=Out Bit3=Out Bit2=Out Bit1=Out Bit0=Out DDRC=(1<<DDC7) | (1<<DDC6) | (1<<DDC5) | (1<<DDC4) | (1<<DDC3) | (1<<DDC2) | (1<<DDC1) | (1<<DDC0);// State: Bit7=0 Bit6=0 Bit5=0 Bit4=0 Bit3=0 Bit2=0 Bit1=0 Bit0=0 PORTC=(0<<PORTC7) | (0<<PORTC6) | (0<<PORTC5) | (0<<PORTC4) | (0<<PORTC3) | (0<<PORTC2) | (0<<PORTC1) | (0<<PORTC0);
// Port D initialization// Function: Bit7=Out Bit6=Out Bit5=Out Bit4=Out Bit3=Out Bit2=Out Bit1=Out Bit0=Out DDRD=(1<<DDD7) | (1<<DDD6) | (1<<DDD5) | (1<<DDD4) | (1<<DDD3) | (1<<DDD2) | (1<<DDD1) | (1<<DDD0);// State: Bit7=0 Bit6=0 Bit5=0 Bit4=0 Bit3=0 Bit2=0 Bit1=0 Bit0=0 PORTD=(0<<PORTD7) | (0<<PORTD6) | (0<<PORTD5) | (0<<PORTD4) | (0<<PORTD3) | (0<<PORTD2) | (0<<PORTD1) | (0<<PORTD0);
// Timer/Counter 0 initialization// Clock source: System Clock// Clock value: Timer 0 Stopped// Mode: Normal top=0xFF// OC0 output: DisconnectedTCCR0=(0<<WGM00) | (0<<COM01) | (0<<COM00) | (0<<WGM01) | (0<<CS02) | (0<<CS01) | (0<<CS00);TCNT0=0x00;OCR0=0x00;
// Timer/Counter 1 initialization// Clock source: System Clock// Clock value: Timer1 Stopped// Mode: Normal top=0xFFFF// OC1A output: Disconnected// OC1B output: Disconnected// Noise Canceler: Off// Input Capture on Falling Edge// Timer1 Overflow Interrupt: Off// Input Capture Interrupt: Off// Compare A Match Interrupt: Off// Compare B Match Interrupt: OffTCCR1A=(0<<COM1A1) | (0<<COM1A0) | (0<<COM1B1) | (0<<COM1B0) | (0<<WGM11) | (0<<WGM10);TCCR1B=(0<<ICNC1) | (0<<ICES1) | (0<<WGM13) | (0<<WGM12) | (0<<CS12) | (0<<CS11) | (0<<CS10);TCNT1H=0x00;TCNT1L=0x00;ICR1H=0x00;ICR1L=0x00;OCR1AH=0x00;OCR1AL=0x00;OCR1BH=0x00;OCR1BL=0x00;
// Timer/Counter 2 initialization// Clock source: System Clock// Clock value: Timer2 Stopped// Mode: Normal top=0xFF// OC2 output: DisconnectedASSR=0<<AS2;TCCR2=(0<<PWM2) | (0<<COM21) | (0<<COM20) | (0<<CTC2) | (0<<CS22) | (0<<CS21) | (0<<CS20);TCNT2=0x00;OCR2=0x00;
// Timer(s)/Counter(s) Interrupt(s) initializationTIMSK=(0<<OCIE2) | (0<<TOIE2) | (0<<TICIE1) | (0<<OCIE1A) | (0<<OCIE1B) | (0<<TOIE1) | (0<<OCIE0) | (0<<TOIE0);
// External Interrupt(s) initialization// INT0: Off// INT1: Off// INT2: OffMCUCR=(0<<ISC11) | (0<<ISC10) | (0<<ISC01) | (0<<ISC00);MCUCSR=(0<<ISC2);
// USART initialization// USART disabledUCSRB=(0<<RXCIE) | (0<<TXCIE) | (0<<UDRIE) | (0<<RXEN) | (0<<TXEN) | (0<<UCSZ2) | (0<<RXB8) | (0<<TXB8);
// Analog Comparator initialization// Analog Comparator: Off// The Analog Comparator's positive input is// connected to the AIN0 pin// The Analog Comparator's negative input is// connected to the AIN1 pinACSR=(1<<ACD) | (0<<ACBG) | (0<<ACO) | (0<<ACI) | (0<<ACIE) | (0<<ACIC) | (0<<ACIS1) | (0<<ACIS0);SFIOR=(0<<ACME);
// ADC initialization// ADC disabledADCSRA=(0<<ADEN) | (0<<ADSC) | (0<<ADATE) | (0<<ADIF) | (0<<ADIE) | (0<<ADPS2) | (0<<ADPS1) | (0<<ADPS0);
// SPI initialization// SPI disabledSPCR=(0<<SPIE) | (0<<SPE) | (0<<DORD) | (0<<MSTR) | (0<<CPOL) | (0<<CPHA) | (0<<SPR1) | (0<<SPR0);
// TWI initialization// TWI disabledTWCR=(0<<TWEA) | (0<<TWSTA) | (0<<TWSTO) | (0<<TWEN) | (0<<TWIE);
// Bit-Banged I2C Bus initialization// I2C Port: PORTB// I2C SDA bit: 1// I2C SCL bit: 0// Bit Rate: 100 kHz// Note: I2C settings are specified in the// Project|Configure|C Compiler|Libraries|I2C menu.i2c_init();
// DS1307 Real Time Clock initialization// Square wave output on pin SQW/OUT: On// Square wave frequency: 1Hzrtc_init(0,1,0);MCUCSR = (1<<JTD);MCUCSR = (1<<JTD);//rtc_set_time(8,37,11);PORTD = 0x20;
while (1) { // Place your code here rtc_get_time(&gio,&phut,&giay); hienthi(); caidat();
}}

--------------------------------------------------------------------------------------------------------------
